In general apk file HMI Modbus has rating is 6.9 from 10. This is cumulative rating, most best apps on google play store have rating 8 from 10. Total reviews in google play store 0. Total number of five star reviews received 0. This app has been rated like bad by 0 number of users. Estimated number of downloads range between 10,000+ downloads in google play store HMI Modbus located in category Tools, with tags and has been developed by Sagram.net. You can visit their website not exists or send hmi.modbus@gmail.com to them. HMI Modbus can be installed on android devices with 4.0.3(Ice Cream Sandwich)+. We provide only original apk files. If any of materials on this site violates your rights, report us You could also download apk of Google and run it using android emulators such as big nox app player, bluestacks and koplayer. You could also download apk of HMI Modbus and run it on android emulators like bluestacks or koplayer. Versions of HMI Modbus apk available on our site: 2.23, 2.14, 2.09, 2.07, 1.77 and others. Last version of HMI Modbus is 2.23 was uploaded 2023/10/12

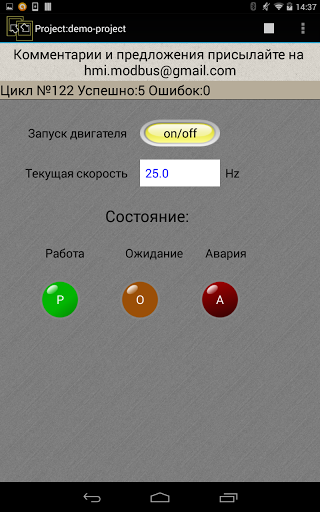

Screenshots of HMI Modbus

Description of HMI Modbus (from google play)

This software can be used as replacement for HMI operator panel. Some functions of Scada-systems such as reading and writing different data types are provided. Modbus TCP/IP protocol is supported. In order to use Modbus RTU/ASCII additional Modbus converter (for example tgw-715) is necessary.
If you need only viewer: https://play.google.com/store/apps/details?id=net.sagram.hmi_modbus_viewer.
Manual: https://drive.google.com/drive/folders/0B_ogMSvuFCPAcUgyZURYaDF1ZTg?usp=sharing
Also implemented communication through Bluetooth (Modbus RTU), can be used for communication via Bluetooth shield for Arduino and other devices.
Viewing requests and responses in Hex format in the log.
Program interface is based on Drag and Drop principle. Long tap on element in editing mode is used to move that element within workspace.
Most external HMI are using port no. 8000, PLC port usually set to 502.
Read/write functions currently supports Int 16, Int 32, Float, Float swapped, Boolean data types.
Software was tested on HMI panel Weintek MT6070iH, Delta DVP20EX2 PLC, Siemens s7-1200 PLC

Version history HMI Modbus

New in HMI Modbus 2.23

Fixed permissions for bluetooth and usb devices (Android above 12). Bugs fixed

New in HMI Modbus 2.14

Fixed some bugs. Added the ability to manually set limits for the chart. Fixed import and export a file for Android 11. Added group text resizing

New in HMI Modbus 2.09

Fixed some bugs. You can create a virtual item that will use multiple addresses for display (using arithmetic operations). A short description in the folder next to the manuals.

New in HMI Modbus 2.07

Fixed some bugs. Added Int32 little endian (swapped) query. Added the ability to save chart data to a CSV file. Added the ability to set a password for Spinner.
You can create a virtual item that will use multiple addresses for display (using arithmetic operations). A short description in the folder next to the manuals.

New in HMI Modbus 1.77

Fixed a bug with entering floats without decimals. Added the ability to set limits for the recorded value. Added the ability to set a password (access) for changing a value for a selected item.

New in HMI Modbus 1.76

Added the ability to set limits for the recorded value. Added the ability to set a password (access) for changing a value for a selected item.

New in HMI Modbus 1.75

Added the ability to change the default PLC address from the list of servers. Added the ability to edit and save the list of servers in the Viewer. Fixed a bug with scanning new Bluetooth devices. Bugs fixed.

New in HMI Modbus 1.69

Fixed export project. Fixed loading of external images in the "button" and "image" elements

New in HMI Modbus 1.68

Fixed loading of external images in the "button" and "image" elements

New in HMI Modbus 1.67

The protocol of communication of the RTU over TCP is added (It is specified in the settings of the communication server). Improved stability of communication.

New in HMI Modbus 1.65

Improved application stability.

New in HMI Modbus 1.64

Fixed compatibility with version 9 android. Fixed setting the time of the X axis of the graph. Minor bugs fixed.

New in HMI Modbus 1.63

Fixed the size of the group request of registers. Added the ability to change the scale in the viewer.

New in HMI Modbus 1.62

Added a menu of favorites settings "Quick Settings"

New in HMI Modbus 1.61

Added the ability to remove ads. The feature of grouping requests (with close addresses) is added. Located in the main menu.

New in HMI Modbus 1.59

Added the ability to remove ads. The setting is in the main menu of the project window.

New in HMI Modbus 1.52

Added the ability to hide the top panel. Added ability to change the server for all elements. The possibility to use a common PLC number is added (you need to set the PLC address "-1" in the communication settings of the element)

New in HMI Modbus 1.50

Added a preview of the value before writing to the PLC. Notifications can be used for a value after scaling. The offset value is added with the calculation of the decimal point.Added the ability to create multiple series on a single chart. You can change the colors of the axes of the chart. The default color for the series is red. Added pop-up notifications. Bugs fixed

New in HMI Modbus 1.46

Added the ability to create multiple series on a single chart. You can change the colors of the axes of the chart. The default color for the series is red. Added pop-up notifications. Bugs fixed

New in HMI Modbus 1.43

Added a request to set the bit while holding the button (momentary).

New in HMI Modbus 1.42

Added the ability to read bits from Int16 registers. Setting the bits in the register works, but this is an experimental function. Bug fixes.

New in HMI Modbus 1.4

Added the ability to communicate via USB serial adapters (supported Modbus RTU). USB OTG is used.Some USB to serial converters are supported, try it.Added request INT32 Unsigned.

New in HMI Modbus 1.33

Switching the states "On" "Off" is transferred to the main menu. When the project is running, the screen is always on.
